    SPEED COMPACT – 3016

    $50.00

    New SKS roller concept adapted to the popular anatomic pocket racing tool. Precise side and base angle beveling. Adjustable from 85° to 90° in 1/2° increments.

    Uses 70mm files.

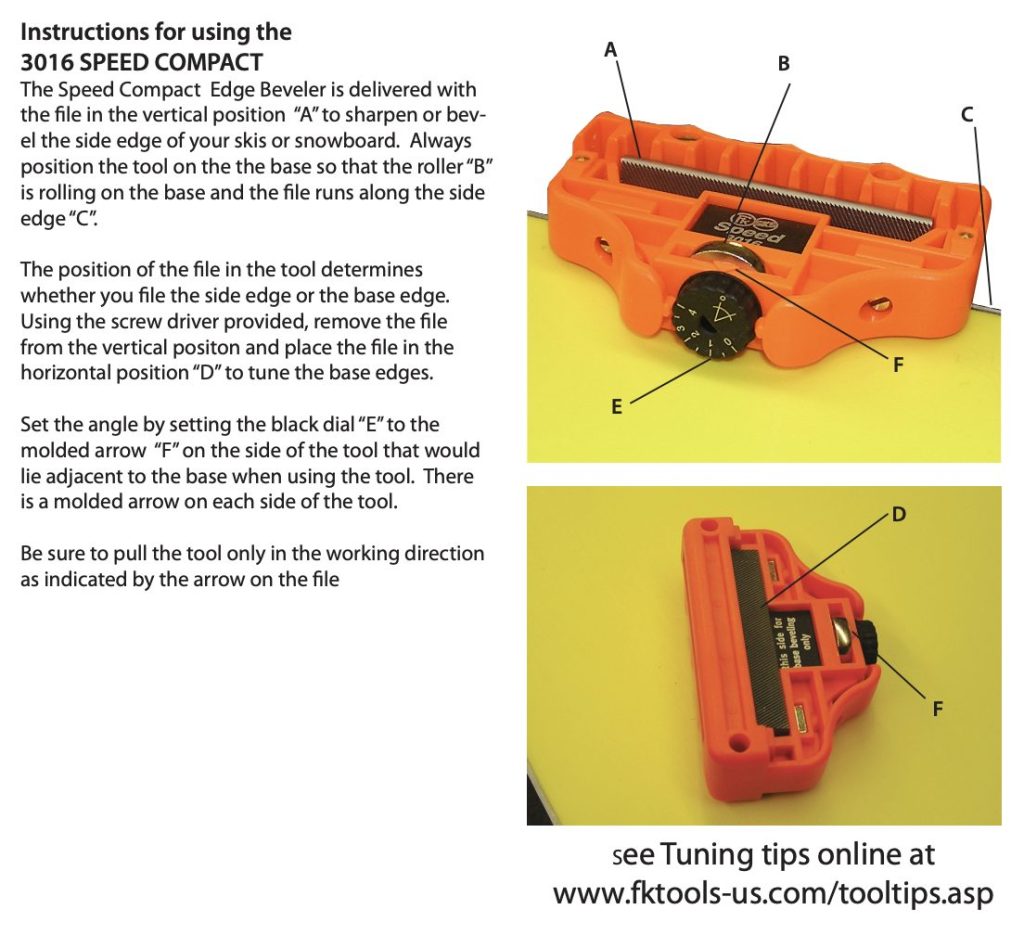

    Instructions for using the 3016 SPEED COMPACT

    The Speed Compact Edge Beveler is delivered with the file in the vertical position “A” to sharpen or bevel the side edge of your skis or snowboard. Always position the tool on the the base so that the roller “B” is rolling on the base and the file runs along the side edge “C”.

    The position of the file in the tool determines whether you file the side edge or the base edge. Using the screw driver provided, remove the file from the vertical positon and place the file in the horizontal position “D” to tune the base edges. Set the angle by setting the black dial “E” to the molded arrow “F” on the side of the tool that would lie adjacent to the base when using the tool. There is a molded arrow on each side of the tool. Be sure to pull the tool only in the working direction as indicated by the arrow on the file

    Reviews

    There are no reviews yet.

    Only logged in customers who have purchased this product may leave a review.

    Download Product PDF

    Click here to download the PDF

    NEW FILE COMING SOON!

    STANDARD ON ALL 3016, 3100, 3117, 3118 TOOLS THIS UPCOMING SEASON

    Tiger File vs Standard File

    Material

    • High Speed Steel VS Carbon Steel
    • up to 2.06% carbon and up to 30% vs up to 1.5% carbon
    • alloying elements such as tungsten vs alloy components <1%
    • molybdenum, vanadium, cobalt, and titanium

    Hardness

    • 63HRC  8% HARDER VS 58HRC
    • High wear resistance
    • higher corrosion resistance
    • higher chip volume
    • high-alloy tool steel

    Manufacturing

    • CNC machined ground/smoothed VS carved out of metal

    Wear Resistance

    • High VS low to medium
    • 100% flat and straight
    • Hardening takes place before grinding, making it flat and straight vs  being aligned manually after the process.



    Will come standard in  3016, 3100, 3117, 3118 tools this upcoming season
